P Channel vs N Channel JFET: Explained

What is a JFET?

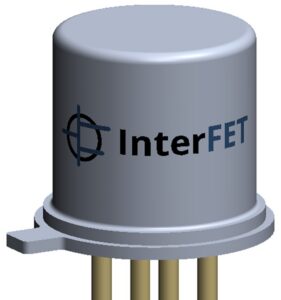

The Junction Field Effect Transistor (JFET) is a unijunction, depletion mode device that can use a voltage applied to a gate with very low leakage to vary channel current with high linearity. Featuring low noise and high radiation tolerance, JFETs are excellent transistors for different applications where precision high-gain amplification is required.

JFETs are available as N-type or P-type devices, which operate under opposite applied voltage conditions. JFETs are fabricated with the substrate of the device serving as the gate, with the channel fabricated as a layer on top of the substrate. A N-type JFET has a substrate of a semiconductor doped as P-type with N-type doping applied to the channel region, and a P-type JFET consists of a N-type substrate with a P-type channel.

representation of n-type jfet — Figure 2 - A simple representation of N-type and P-type JFETs

representation of p-type jfet — Figure 2 - A simple representation of N-type and P-type JFETs

JFETs operate by a similar mechanism to that of a reverse biased PN-junction, where when a diode is subjected to a positive potential difference from the N-type area to the P-type area, a depletion region will form, and no significant amount of current will be conducted between the two terminals excluding a very small leakage current.

representation of a forward conducting diode — Figure 3 - A simple representation of diode biasing

representation of a reverse-bias diode — Figure 3 - A simple representation of diode biasing

This property is utilized in JFETs as a means of constricting the channel to reduce the current conducting from the drain to the source, where in N-type JFETs if a positive voltage is applied across the Drain to the Source $\left(V_{DS} \ge 0 \right)$ , and a voltage less than or equal to zero is applied across the Gate to the Source $\left(V_{GS} \le 0 \right)$ , the depletion region created at the junction will be adjusting the positive Drain current $\left(I_D \ge 0 \right)$ . Conversely for a P-type JFET, if a negative voltage is applied across the Drain to the Source $\left(V_{DS} \le 0 \right)$ , and a voltage greater than or equal to zero is applied across the Gate to the Source $\left(V_{GS} \ge 0 \right)$ , the depletion region will vary the negative Drain current $\left(I_D \le 0 \right)$ . Figure 4 shows a comparison between a N-type JFET that is fully conducting $\left(V_{GS} = 0 \right)$ and a partially conducting one $\left(V_{GS(OFF)} \lt V_{GS} \lt 0 \right)$ .

unbiased gate, fully conducting — Figure 4 - A simple representation of JFET biasing and conduction

biased gate, limited conduction — Figure 4 - A simple representation of JFET biasing and conduction

This behavior is a key function for JFETs since the current conducted through the channel can be linearly controlled by adjusting the applied Gate to Source voltage

\left(V_{GS}\right)

. Furthermore, at the lower end of a device’s possible Drain to Source voltage

\left(V_{DS}\right)

range, the device will be within its Ohmic region, where the Drain current can be linearly varied by both the

V_{DS} \space \textsf{and} \space V_{GS}

. This property alone allows JFETs to serve a variety of purposes, acting as simple amplifiers or Voltage Controlled Resistors (VCRs). Figure 5 shows the linear relation of the

I_D

to the applied

V_{GS}

, particularly at

V_{GS}

values closer to zero.

The impact of

V_{DS}

and

V_{GS}

I_D

is a crucial characteristic to take for JFETs, which is often taken and depicted as an

I_D \text{–} V_{DS}

sweep. Figure 6 shows an example of this kind of sweep with a N-type JFET (NJF) and a P-type JFET (PJF) using a J109 N-type JFET and an equivalent P-type JFET. Note how in the Ohmic region, the

I_D

is linear to the applied

V_{DS}

and is linear to the applied

V_{GS}

, whereas in the Saturation region, the

I_D

is only linear to the

V_{GS}

Two key parameters of JFETs are the Drain Current Cutoff Voltage

\left(V_{GS(OFF)}\right)

and the Drain Saturation Current

\left(I_{DSS}\right)

. The Drain Current Cutoff Voltage is the applied gate voltage required to ideally stop all current traveling through a JFET, typically in its Saturation region. The current never completely shuts off, so

V_{GS(OFF)}

is measured as the

V_{GS}

required to set the drain current to below some very small value, with preferences ranging from picoamps to microamps. Figure 7 shows a simple representation of the

V_{GS(OFF)}

behavior. The Drain Saturation Current is the drain current measured at a prescribed

V_{DS}

in the device’s saturation region with

V_{GS} = 0 \textsf{V}
